INDUSTRIAL REVERSE OSMOSIS
WATER FILTRATION SYSTEMS

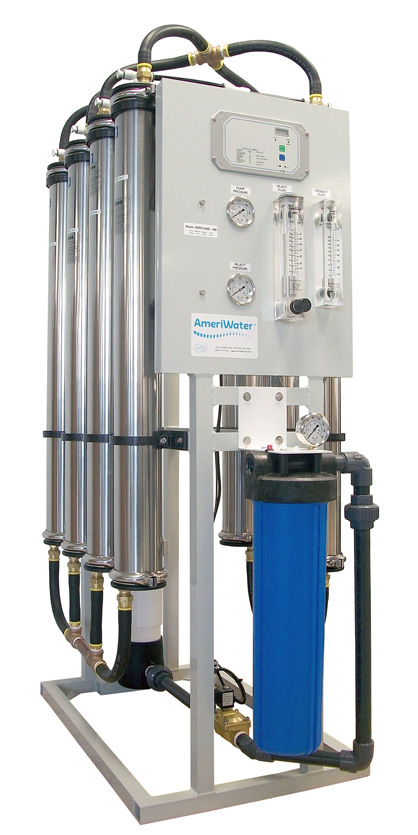

AmeriWater’s IRO series of industrial reverse osmosis systems are designed for durability and ease of operation. These units feature a quiet submersible pump with an open front design for ease of service. They provide high-quality water for industrial applications using 2,400 to 19,200 gallons per day.
- Control / Monitor
- Digital microprocessor with digital TDS and fault/status readouts
- TDS adjustable limit
- Low pressure alarm shut down with optional restart
- Tank full contacts with short or long restart
- Five second pump start delay
- Pretreat lockout or remote operate on/off switch
- High rejection TFC membranes
Stainless steel membrane housings
Powder coated aluminum frame
Multi-stage centrifugal submersible pump with thermal motor protection
Sediment prefilter with gauge
Concentrate valve
Flow meters for concentrate and permeate
Automatic feed water valve
Pump and reject liquid filled pressure gauges
| GALLONS PER DAY* | 2,400 | 3,600 | 4,800 | 7,200 |
|---|---|---|---|---|
| Number of Membranes | 2 | 3 | 2 | 3 |
| Membrane Model No. | R22-4026 | R22-4041 | ||
| Pump HP, 3 Ph | 1 | |||
| FLA 230V | 4.7 | |||
| FLA 460V | 2.5 | |||
| FLA 575V | N/A | |||
| Shipping Weight | 175 | 185 | 190 | 220 |
| Dimensions In. (W x D x H) | 24 x 28 x 64 | |||
| * Permeate flow based on the following standard test conditions: 2000 ppm NaCl, 150 psi, 77°F, pH 8 and 15% recovery. A complete water analysis and computer modeling is necessary for an accurate permeate flow. | ||||
| Model numbers begin with 00IRO, then the gallons and voltage. Examples: 00IRO2400-460 or 00IRO9600-230 | ||||
| GALLONS PER DAY* | 9,600 | 12,000 | 14,400 | 16,800 | 19,200 |
|---|---|---|---|---|---|
| Number of Membranes | 4 | 5 | 6 | 7 | 8 |
| Membrane Model No. | R22-4041 | ||||
| Pump HP, 3 Ph | 3 | ||||
| FLA 230V | 10.1 | ||||
| FLA 460V | 5.3 | ||||
| FLA 575V | 3.7 | ||||
| Shipping Weight | 250 | 280 | 310 | 340 | 370 |
| Dimensions In. (W x D x H) | 24 x 28 x 64 | 24 x 46 x 64 | |||
| * Permeate flow based on the following standard test conditions: 2000 ppm NaCl, 150 psi, 77°F, pH 8 and 15% recovery. A complete water analysis and computer modeling is necessary for an accurate permeate flow. | |||||
| Model numbers begin with 00IRO, then the gallons and voltage. Examples: 00IRO2400-460 or 00IRO9600-230 | |||||
SPECIFICATIONS
- Design Temperature: 77°F
- Minimum Inlet PSI: 20
Operation Temperature: 50 – 90°F
Nominal Rejection: 95 – 98%
Recovery: 50% (adjustable)
Pump Operation PSI: 185 – 225
